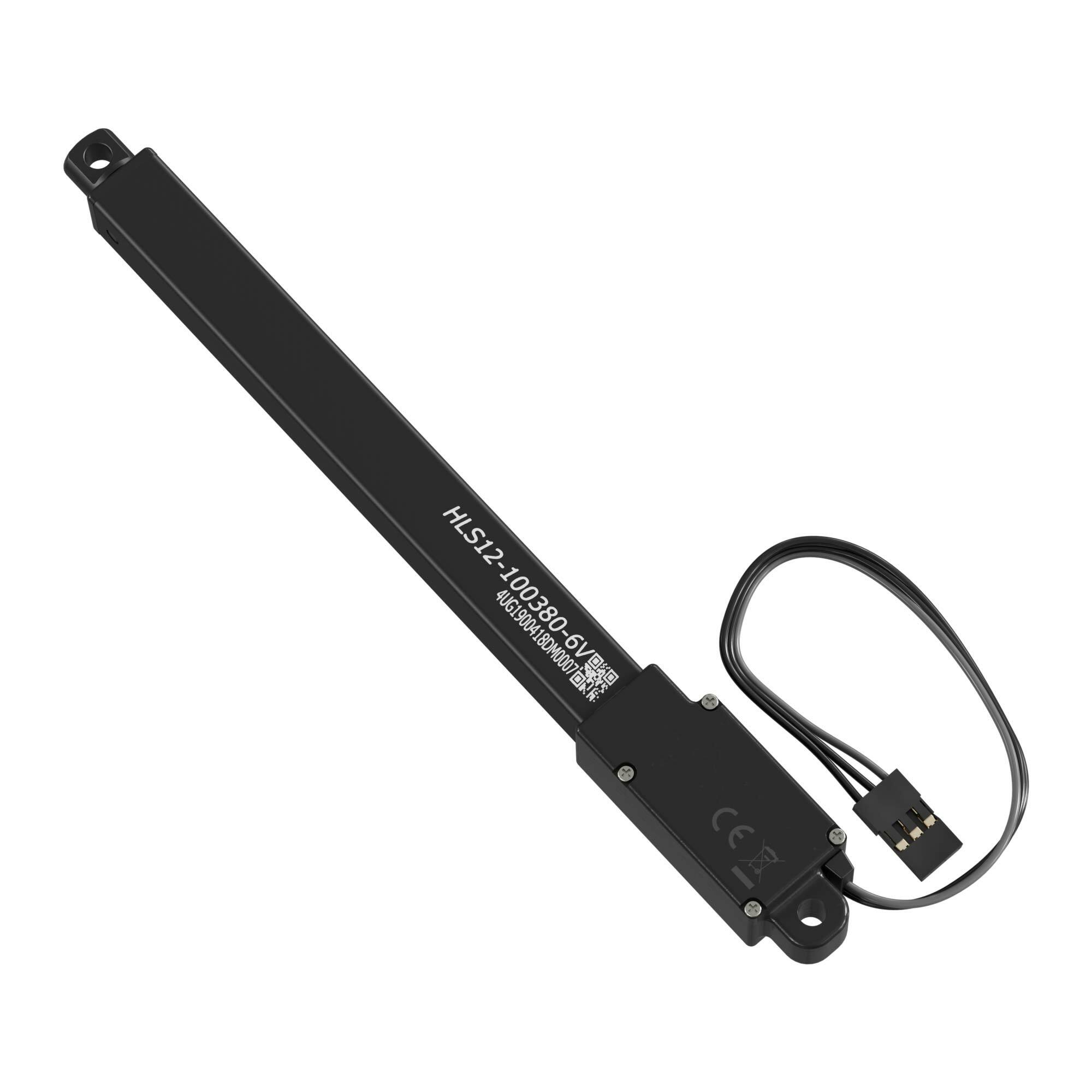

Hitec Linear Servo (3.9″ Stroke, 0.2″/sec, 48.9lb Thrust)

196,97 (161,45 + IVA)

Checking...

SKU: HLS12-100380-6V Categories: ,

Hitec Linear Servo (3.9″ Stroke, 0.2″/sec, 48.9lb Thrust)

196,97 (161,45 + IVA)

Checking...

SKU: HLS12-100380-6V Categories: ,

European Costumers

Weight 1.9 oz
Stroke 3.9″
Gear Ratio 380:1
Voltage Range 4.8 – 7.4VDC
Operating Temperature -10°c ~ +50°c
Motor Type Brushed DC
Feedback Style Digital
Wire Length 6.3″
Connector Type 3-Pos TJC8 Servo Connector [MH-FC]
Manufacturer Part Number 41015
Max PWM Range 900-2100μsec
Speed (No Load) @ 6VDC 3.3mm/sec | 0.1″/sec
Speed (No Load) @ 7.4VDC 4.1mm/sec | 0.2″/sec
Thrust @ 6VDC 18.0kg | 39.7lb
Thrust @ 7.4VDC 22.2kg | 48.9lb
Current Drain (Stall) @ 6VDC 500 mA
Current Drain (Stall) @ 7.4VDC 620 mA
