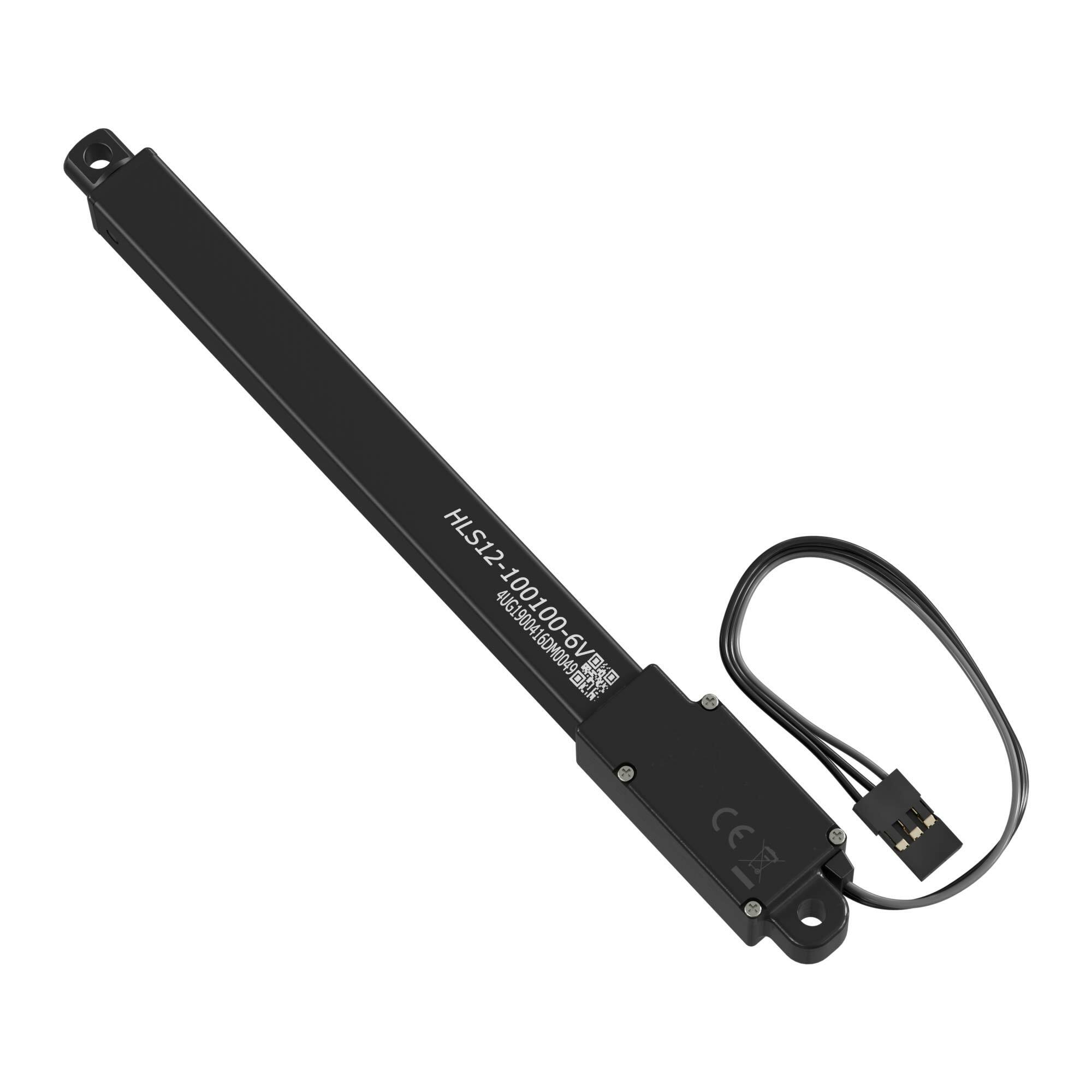

Hitec Linear Servo (3.9" Stroke, 0.6"/sec, 11.5lb Thrust)

140,29 (114,99 + IVA)

SKU: HLS12-100100-6V Categories: ,
Checking...

Download

Drawings
Weight 1.9 oz
Stroke 3.9"
Gear Ratio 100:1
Voltage Range 4.8 - 7.4VDC
Operating Temperature -10°c ~ +50°c
Motor Type Brushed DC
Feedback Style Digital
Wire Length 6.3"
Connector Type 3-Pos TJC8 Servo Connector [MH-FC]
Manufacturer Part Number 41004
Max PWM Range 900-2100μsec
Speed (No Load) @ 6VDC 13.0mm/sec | 0.5"/sec
Speed (No Load) @ 7.4VDC 13.0mm/sec | 0.5"/sec
Thrust @ 6VDC 4.2kg | 9.3lb
Thrust @ 7.4VDC 5.2kg | 11.5lb
Current Drain (Stall) @ 6VDC 500 mA
Current Drain (Stall) @ 7.4VDC 620 mA
