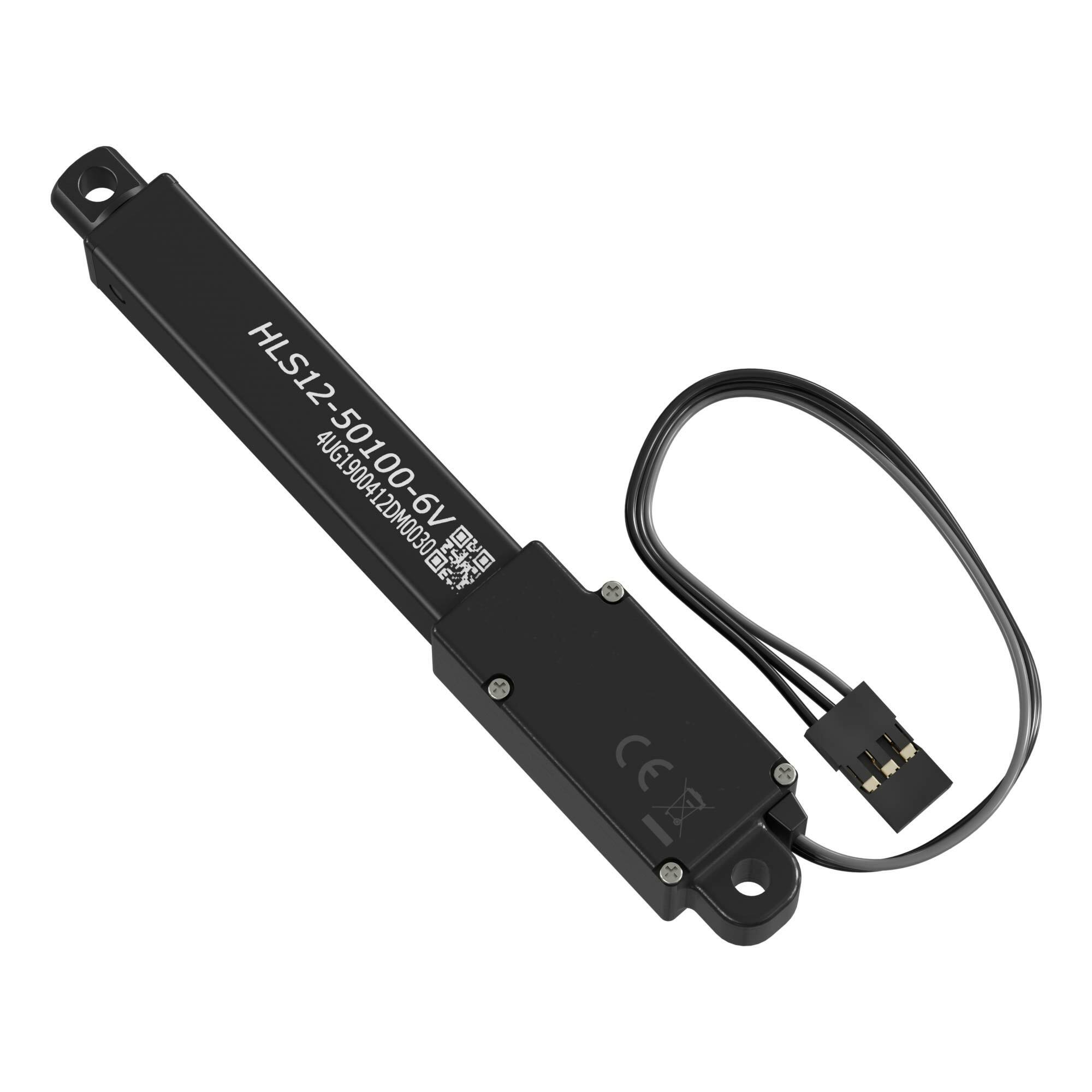

Hitec Linear Servo (2.0″ Stroke, 0.6″/sec, 11.5lbs Thrust)

196,97 (161,45 + IVA)

Checking...

SKU: HLS12-50100-6V Categories: ,

Hitec Linear Servo (2.0″ Stroke, 0.6″/sec, 11.5lbs Thrust)

196,97 (161,45 + IVA)

Checking...

SKU: HLS12-50100-6V Categories: ,

European Costumers

Weight 1.3oz
Stroke 2.0″
Gear Ratio 100:1
Voltage Range 4.8 – 7.4VDC
Operating Temperature -10°c ~ +50°c
Motor Type Brushed DC
Feedback Style Digital
Wire Length 6.3″
Connector Type 3-Pos TJC8 Servo Connector [MH-FC]
Manufacturer Part Number 41002
Max PWM Range 900-2100μsec
Speed (No Load) @ 6VDC 13.0mm/sec | 0.5″/sec
Speed (No Load) @ 7.4VDC 16.1mm/sec | 0.6″/sec
Thrust @ 6VDC 4.2kg | 9.3lb
Thrust @ 7.4VDC 5.2kg | 11.5lb
Current Drain (Stall) @ 6VDC 500 mA
Current Drain (Stall) @ 7.4VDC 620 mA
