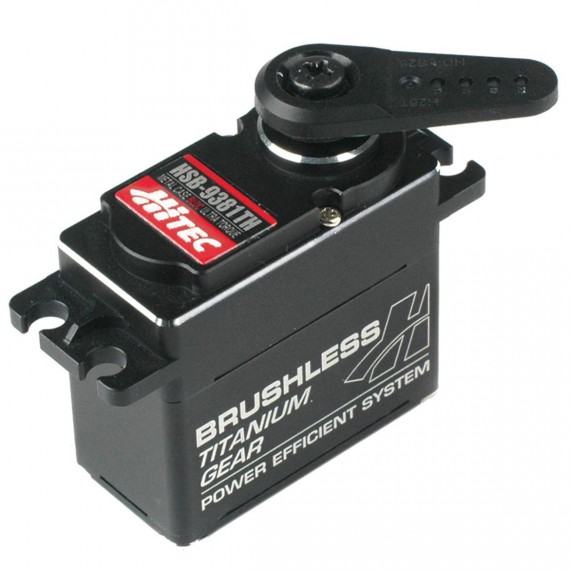

HSB-9381TH Servo Hitec
€257,31 (€210,91 + IVA)
Checking...
- Spese di spedizione / Shipping cost
- Taxes if you live outside Italy (read more…)
- Products are shipped worldwide
European Costumers
With ultra-efficient brushless motors, titanium gear trains, low current consumption and constant output power, the full metal case HSB-9381TH is the perfect match for the most demanding radio control pilots and racers.
You can use it with our CM-180 gearbox
| Dimensions | 1.57″ x 0.79″ x 1.50″ (40 mm x 20 mm x 38 mm) |
|---|---|
| Product Weight | 2.4 oz (68 g) |
| Output Shaft Style | 25 tooth (H25T) spline |
| Voltage Range | 5.0 V – 9.0 V |
| No-Load Speed (6.0V) | 0.17 sec/60° |
| No-Load Speed (7.4V) | 0.14 sec/60° |
| Stall Torque (7.4V) | 472 oz-in (34 kg.cm) |
| Max PWM Signal Range (Standard) | 700-2300 μsec |
| Travel per µs (out of box) | 0.099°/μsec |
| Travel per µsec (reprogrammed) | 0.124°/μsec |
| Max Travel (out of box) | 158° |
| Max Travel (reprogrammed) | 198° |
| Pulse Amplitude | 3-5 V |
| Operating Temperature | -20°C to +60°C |
| Continuous Rotation Modifiable | No |
| Direction w/ Increasing PWM Signal | Clockwise |
| Deadband Width | 1 µs |
| Motor Type | Brushless |
| Feedback Style | 5KΩ Potentiometer |
| Output Shaft Support | Dual Ball Bearing |
| Gear Type | Straight Cut Spur |
| Gear Material | Titanium |
| Wire Length | 13″ (330.2 mm) |
| Wire Gauge | 20 AWG |
