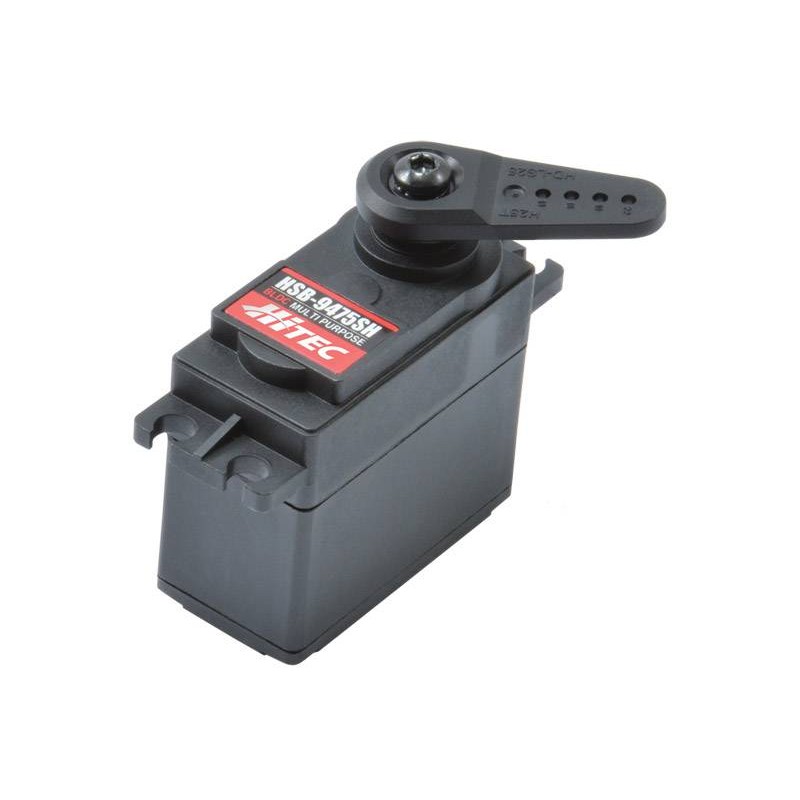

HSB-9475SH Brushless servo hitec

HSB-9475SH Brushless servo hitec

154,89 (126,96 + IVA)

96 in stock

SKU: HSB-9475SH Category: Tags: ,
Dimensions 1.57” x 0.78” x 1.45” (40 x 20 x 37mm)
Product Weight 2.19oz (62g)
Output Shaft Style 25 tooth (H25T) spline
Voltage Range 6.0V - 7.4V
No-Load Speed (6.0V) 0.13 sec/60°
No-Load Speed (7.4V) 0.10 sec/60°
Stall Torque (6.0V) 269 oz/in. (19.4 kg.cm)
Stall Torque (7.4V) 269 oz/in. (19.4 kg.cm)
Max PWM Signal Range (Standard) 700-2300μsec
Travel per µs (out of box) .076°/μsec
Max Travel (out of box) 121°
Pulse Amplitude 3-5V
Operating Temperature -20°C to +60°C
Continuous Rotation Modifiable No
Direction w/ Increasing PWM Signal Clockwise
Deadband Width 2µs
Motor Type Brushless
Feedback Style 5KΩ Potentiometer
Output Shaft Support Dual Ball Bearings
Gear Type Straight Cut Spur
Gear Material Steel
Wire Length 11.81" (300mm)
Wire Gauge 20AWG
