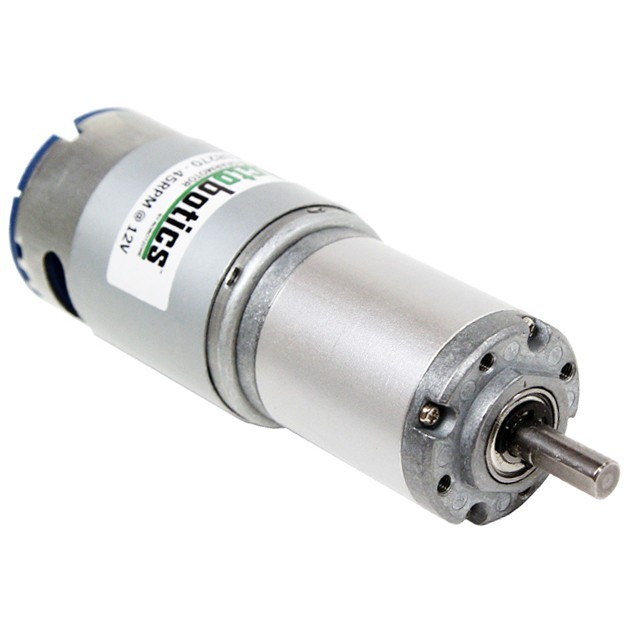

12 RPM HD Premium Planetary Gear Motor
12 RPM HD Premium Planetary Gear Motor
€55,13 (€45,19 + IVA)
Checking...
- Spese di spedizione / Shipping cost
- Taxes if you live outside Italy (read more…)
- Products are shipped worldwide
12 RPM HD Premium Planetary Gear Motor
€55,13 (€45,19 + IVA)
Checking...
12 RPM HD Premium Planetary Gear Motor
European Costumers
| Voltage (Nominal) | 12V |
|---|---|
| Voltage Range (Recommended) | 6V – 12V |
| Speed (No Load)* | 12 rpm |
| Current (No Load)* | 0.54A |
| Current (Stall)* | 20A |
| Torque (Stall)* | 8,110.2 oz-in (584 kgf-cm) |
| Gear Ratio | 721:1 |
| Gear Material | Metal |
| Gearbox Style | Planetary |
| Motor Type | DC |
| Motor Brush Type | Graphite |
| Output Shaft Diameter | 6mm (0.236”) |
| Output Shaft Style | D-shaft |
| Output Shaft Support | Dual Ball Bearings |
| Operating Temperature | -10°C ~ +60°C |
| Mounting Screw Size | M3 x 0.5mm |
| Product Weight | 380g (13.4oz) |
