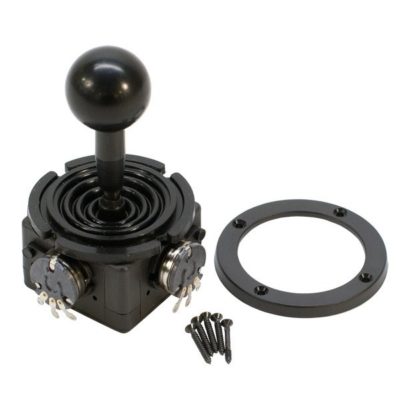

This 3 function joystick has 3 potentiometers, each with a 5K resistance. The X and Y are centered with a single spring hidden under the dust cover. This single spring makes moving through the range smoother compared to a conventional joystick with a spring for each axis. The third potentiometer is controlled with a twisting motion of the top. It has its own return spring. When the stick is released, each pot will have a resistance reading of 2.5K
€60,38 (€49,49 + IVA)
| Connector | Solder Tabs |
|---|---|
| Operating Temperature | -10° to 80° C |
| Weight | 0.25 lbs |
| Tolerence | +/-20% |
| Linearity | +/-1% |
| Resistance | 5K |
| Temperature Coefficient Resistance | +/-400 ppm/ C° |
| X/Y Axis Electricity Corner | +/-25° |
| Z Axis Electricity Corner | +/-45° |
| Insulation Resistance | 50M @ 500VDC 60 sec. |
| Restoration Error Rate | +/- 0.06K |
| Prolepsis Mechanical Life-cycle | 500,000 cycles |
