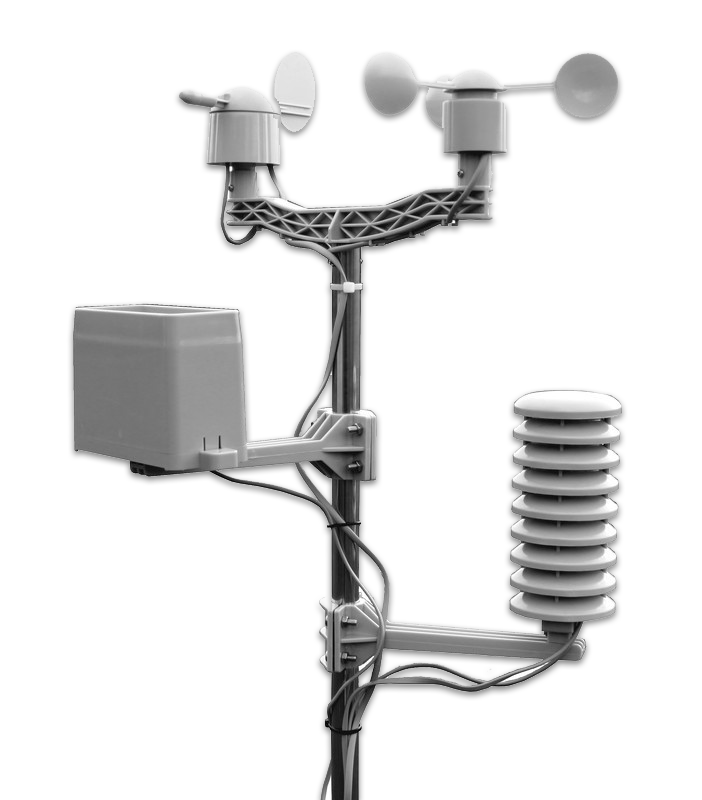

Outdoor Weather Station WS-6147

The Outdoor Weather Station WS-6147 is intended to be used together with the Outdoor Weather Bricklet. It consists of

• Anemometer (wind speed sensor),
• Wind direction sensor,
• Pluviometer (rain gauge),
• Thermometer (temperature sensor) and
• Hygrometer (humidity sensor).

All necessary mouting brackets, cables and screws are included. The mounting pole has an inner/outer diameter os 18.5mm/20mm

The weather station is batterie powered* and establishes a wireless connection to the Outdoor Weather Bricklet with a range of up to 100m.

The Outdoor Weather Bricklet can read out up to 256 WS-6147 at the same time. The data is differenciated by an indentifier that is automatically assigned on the first startup of the weather station.

Measurements, units and resolutions are:

• Temperature in °C with 0.1°C resolution
• Humidity in %RH with 1%RH resolution
• Wind speed in m/s with 0.1m/s resolution
• Gust speed in m/s with 0.1m/s resolution
• Rain in mm with 0.1mm resolution
• Wind direction in 16 discrete steps (N, NNE, NE, ENE, E, ESE, SE, SSE, S, SSW, SW, WSW, W, WNW, NW, NNW)
• Battery status

The Weather Station has a bounding box size of 40x30x70cm (including all sensors and the pole). The wind direction, wind speed, rain and temperature/humidity sensors have a size of 20x8x18cm, 18x10x10cm, 12x6x10cm and 17x8x8cm respectively.

* Batteries are not included, you need two AA batteries.
